The Nexus Metal range of 10A, 10AX light switches have a sleek, slim design with softly rounded corners and a quality finish to compliment any interior decor. They have no visible plastic around the light switch itself and come with colour matched screws.

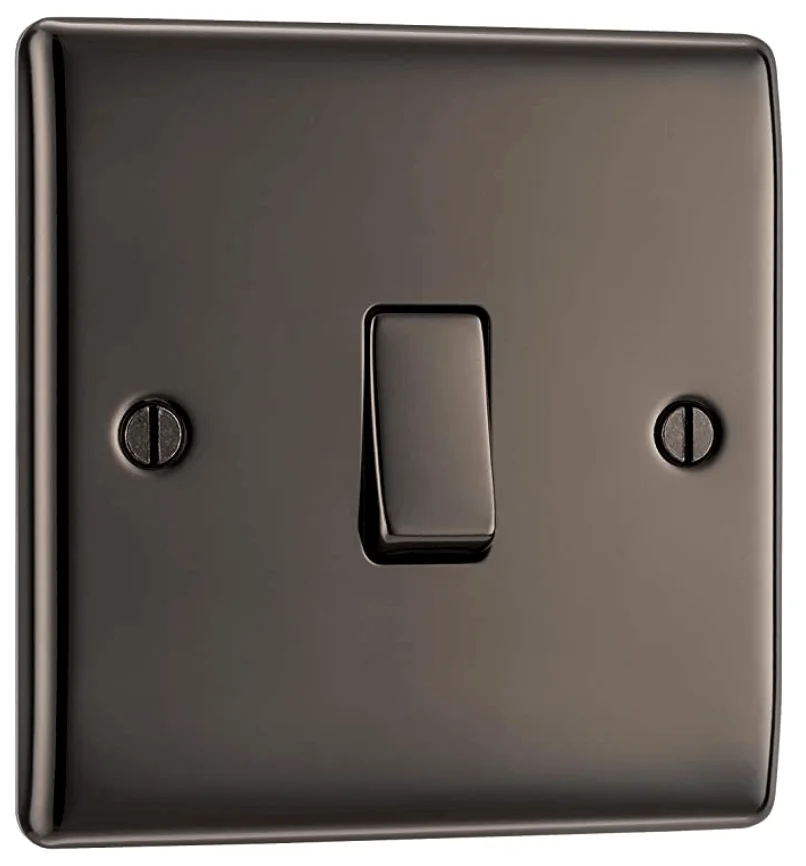

The NBN12 is the ultimate in stylish design, with a black nickel finish to compliment a modern, sleek decor, but is practicable with a light lacquer coating for durability and to limit finger print marks!

It has a single switch operated by a two way rocker, is easy to install and can be used as a direct replacement for existing switches or for new builds. It is suitable for both domestic and commercial installations.

Part of the BG Nexus Metal Range a full range of matching products are available. 25 Year Manufacturer Guarantee.

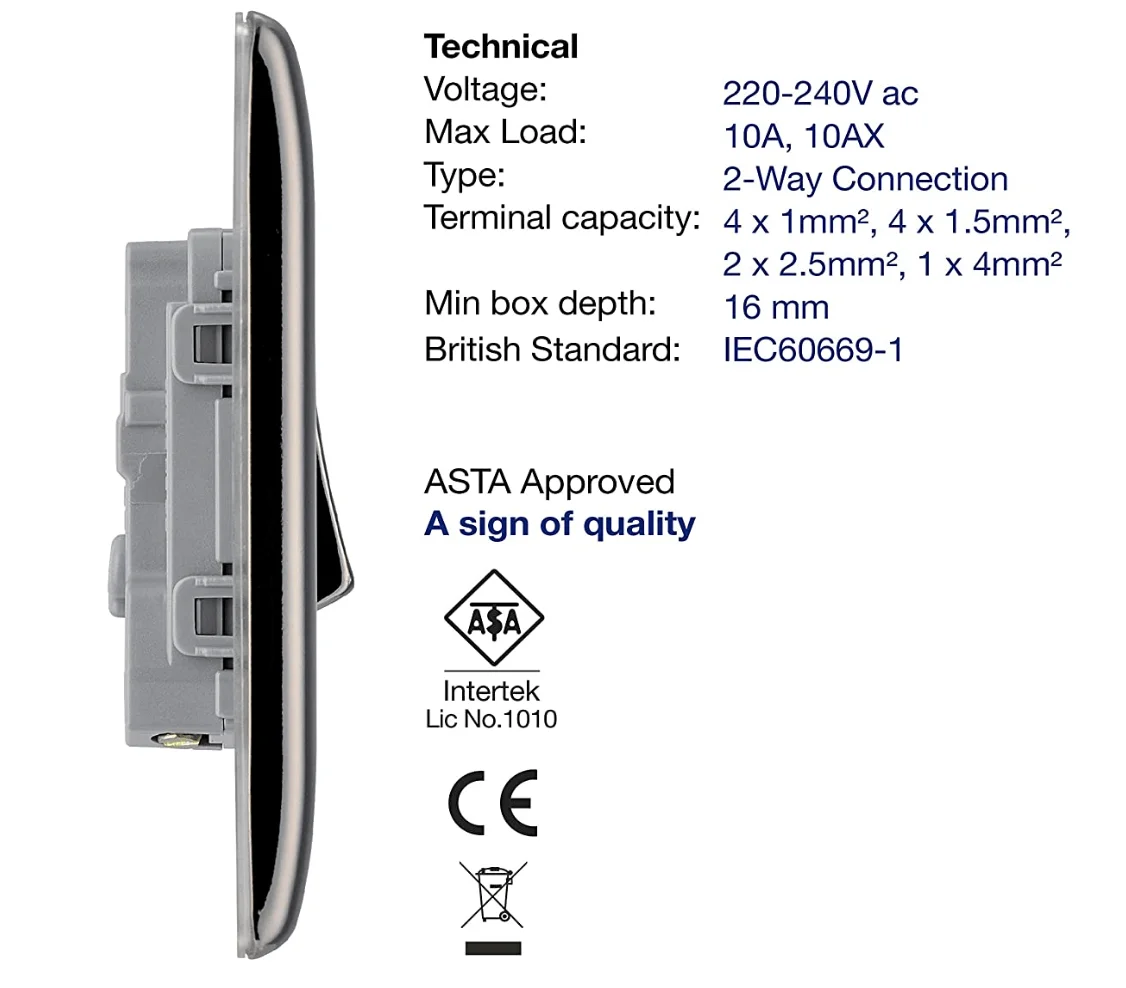

Specifications

Brand	BG Nexus
Standards	BS EN 60669-1
Contact Gap	3.0mm minimum
Dimensions	86mm x 86mm x 21.2mm (L,H,D)
Face Plate	1 Gang switch, 1 Gang flat plate
Finish	Black Nickel
Fixing Centres	60.3mm
Gasket	Integral gasket for moisture protection
Installation	Colour Matched Fixing Screws
Mounting Box	16mm minimum
Power	10 Amp, 250V~(10Ax – No derating for inductive or fluorescent loads)
Switch Type	10A, 10Ax, 1 Gang 2 way rocker operated light switch
Terminal Capacity	4 x 1.0mm2 4 x 1.5mm2 2 x 2.5mm2 1 x 4.0mm2
Manufacturer Warranty	25 Year manufacturer guarantee
