Description
- Wide Measurement range 0~99.9%, suitable for 4 Group Wood Species.
- Employ contact pin resistance to test, adopt high-precision electron components to test the moisture value on over one hundred kinds of common wood by group internally.
- In appearance, use ergonomics. It is easy and fast for user to use the meter to test with simple key operation mode and comfortable hand feeling.
- Can be used to test all kinds of wood paperboard and dry cargo.

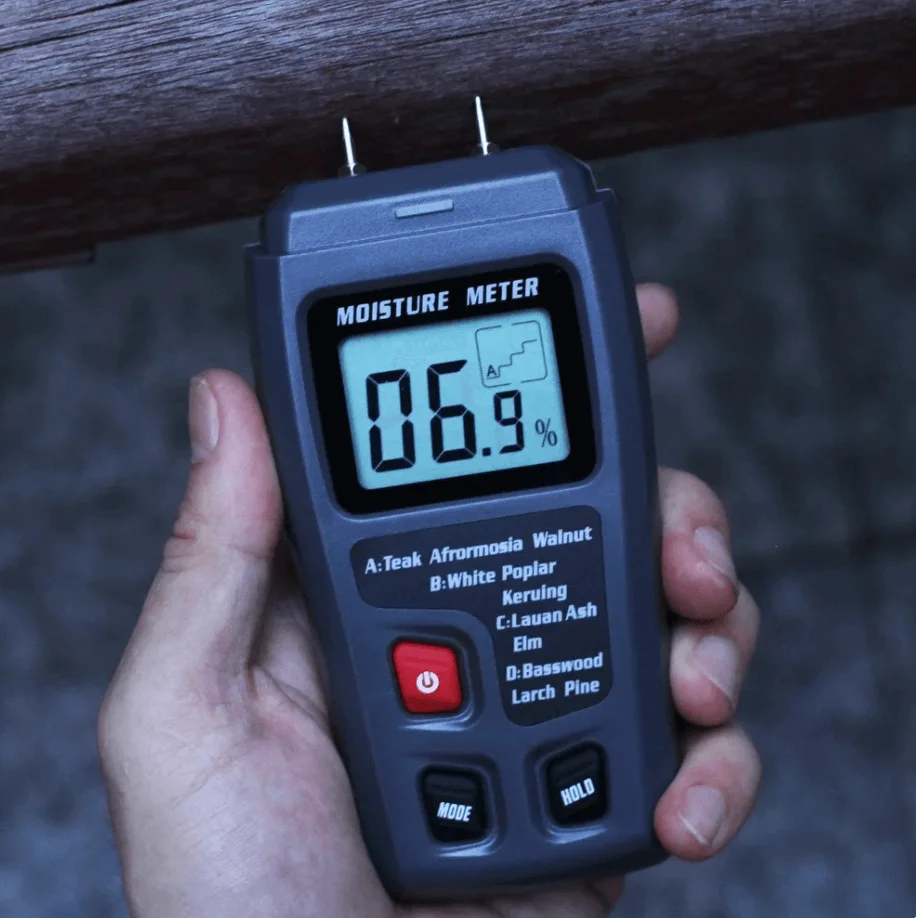

- Large LCD display of wood moisture value.
- Built-in four kinds of patterns with precise testing.
- Employ ergonomics design to adapt various special occasions.
- Built-in low battery detection and automatic power off.

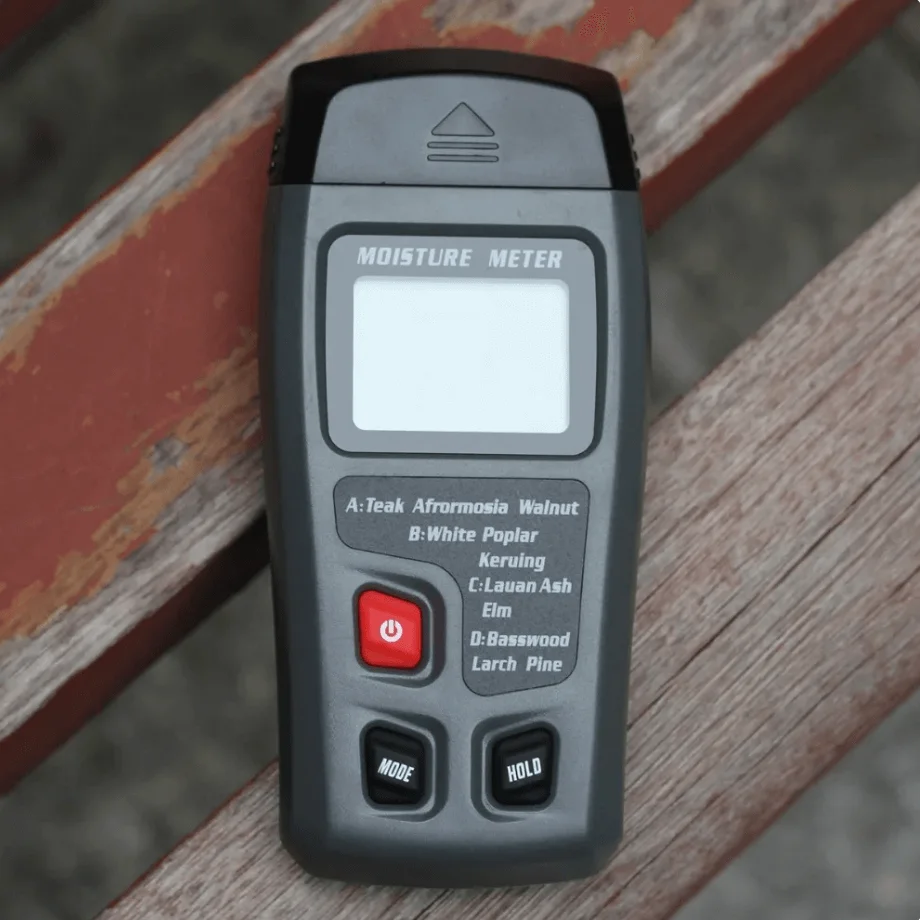

- 4 measurement modes, the mode can be selected according to the hardness of the wood, mode A is suitable for the hardest, D is suitable for the softest.
- Generally, the default mode A is enough, and the mode has no effect on the measurement data.
Note

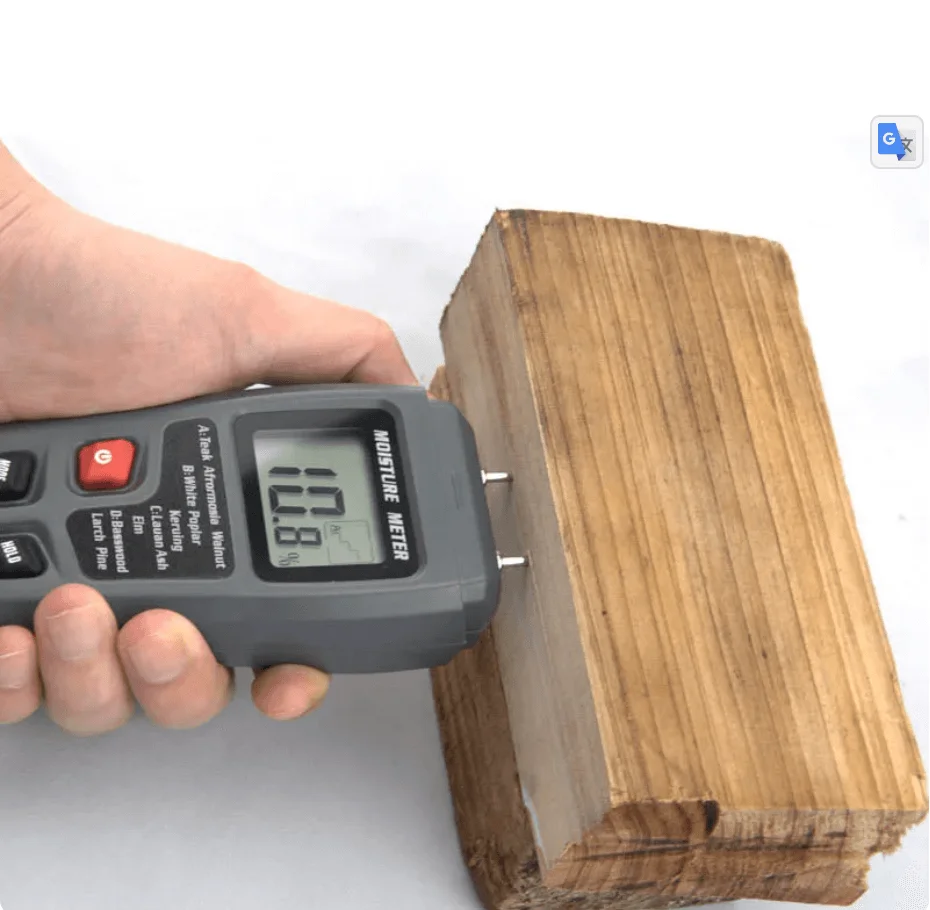

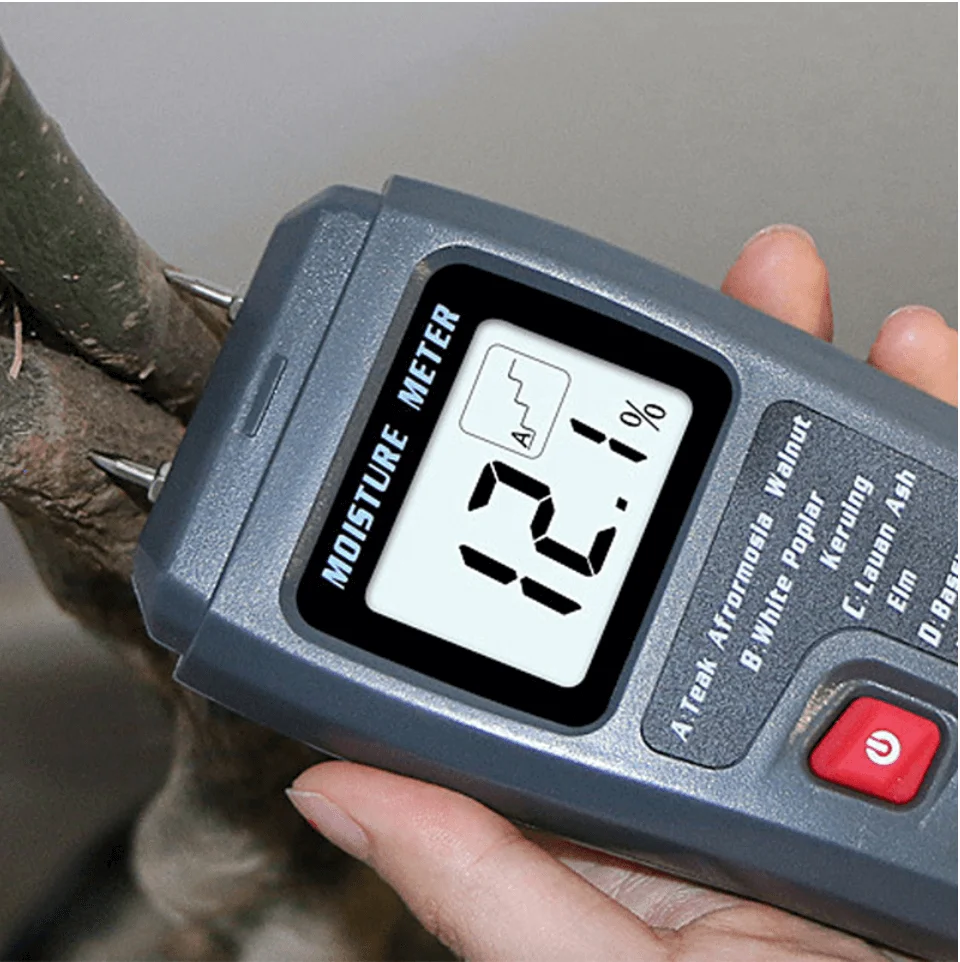

- For measuring soft wood, insert the probe directly into the item under test.
- When measuring hard materials, it is recommended to drill two small holes first, and then use the measuring probe to pierce the object to be measured.
Specifications
- Display: Large LCD characters display
- Measurement principle: Electrical resistance
- Measurement range of wood: 0~99.9%
- Resolution: 0.1%
- Accuracy: +/-0.5%
- Electrode length: 10mm(0.4”)
- Electrode pins: Integrated
- Auto power off: After approx. 15 minutes
- Power supply: One 9V battery (not included)
- Meter housing: ABS plastic
- Operating Temperature: 0~40 C (32~104F)

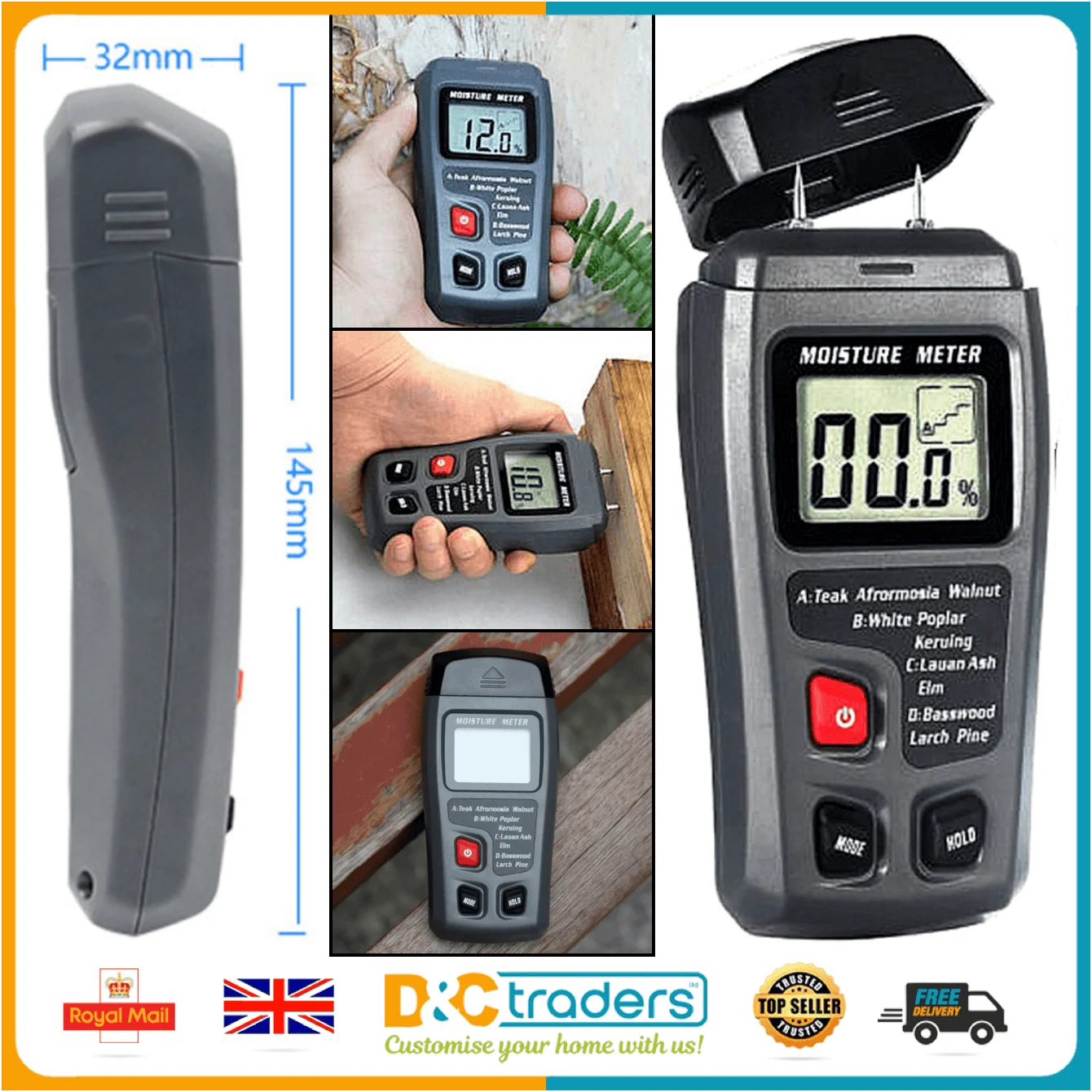

- Dimensions: 145x67x32mm
- Weight: 200g
Package Includes
- 1 pcs x Moisture meter (battery not included)
- 1 pcs x User Manual
